Township Projects:

Our company is involved in structural design of various kinds of townships. Each township was designed to meet special requirements of architects and owner. All townships were designed to meet estimated cost. Brief overview of these projects is given below.

Birla Cellulosic Township at Birladham, Kosamba, Gujarat.

  • Architect : M/S. Hasmukh C. Patel, Ahmedabad

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Total Area : 80 Acres

  • Project Cost : Rs. 20 Crores

  • Year : 1995-1997

  • Structural System : R.C.C frame structure and portal frame structures

  • Substructure : Isolated and combined footings.

Residential Buildings:

Different housing facilities were designed as mentioned below.

Description No. of Units Area (Sq. meter)
M.D.Bunglow 1 1500
V.I.P Guest House 1 1000
Special House 2 600
Type A housing 2 200 Each
Type B housing 8 170 Each
Type C housing 9 140 Each
Type D housing 50 100 Each
Type F housing 80 70 Each
Type G housing 100 56 Each
Office building, guest house, hostel, club house for staff & managers, swimming pool, shopping center, hospital, & school 1 Total area: 20,000

Reliance Industries Limited Township at PatalGanga, Maharastra

  • Architect : Vastu-Shilpa Consultants, Ahmedabad

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Total Area : 100 Acres

  • Project Cost : Rs. 80 Crores

  • Year : 1995-1997

  • Structural System : Reinforced Concrete Structure

  • Substructure : Isolated and combined footings.

Residential Buildings:

Different housing facilities were designed as mentioned below.

Description No. of Units Area (Sq. meter)
Type-1 900 80Each
Type-2 500 95Each
Type-3 700 140Each
Type-4 20 200 Each
Type-5 5 260Each

Public Buildings:

Area of public buildings: 40,000 Sq. meter

Following public buildings were designed for Reliance Industries.

  • 1. School Building including open air theater ( Area 9100 Sq. meter) School entrance plaza (550 Sq. meter)

  • 2. 75 bed Hospital (8000 Sq.meter)

  • 3. Guest Houses

  • 4. Club house

  • 5. Temple (100 Sq.meter)

  • 6. Water tower structure Overhead tank: 8.0 Lacs liters Underground tank: 18 Lacs liters

  • 7. Computer center (300 Sq.meter)

  • 8. Security and gate house (75 Sq. meter)

  • 9. Substations (6 numbers of 100 Sq. meter each)

  • 10. Effluent Treatment Plant ( Capacity of 6.0 lacs of liters a day)

  • 11. Community Center (1600 Sq.meter)

  • 12. Sports Complex (2300 Sq. meter)

  • 13. Graduate Engineers' Training (G.E.T) hostel (2000 Sq. meter)

  • 14. Market (1600 Sq. meter)

Township for Videocon at Bharuch, Gujarat

  • Architect : M/S Hasmukh C. Patel, Ahmedabad

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Total Area : 20 Acres

  • Project Cost : Rs. 6 crores

  • Year : 1992-93

  • Structural System : R.C.C frame structure

  • Substructure : Underreamed cast-in-situ piles and concrete grade beams

Facilities:

Total 100 housing units of area 8000 Sq. meter were designed. Various other units such as guest house, shopping center, security and gate house, and water tank structures of 1000 Sq. meter were designed.

Pramukh Park Township at Surat, Gujarat

  • Architect : M/S Hasmukh C. Patel, Ahmedabad

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Total Area : 20 Acres

  • Project Cost : Rs. 5 crores

  • Year : 1995

  • Structural System : R.C.C frame structure

  • Substructure : solated and combined concrete footings

Summary:

Total 320 blocks of flats were designed. Each block consists 16 flats of 50 Sq. meter to 70 Sq. meter

Maratha Cement Township, Gadchandur, Maharastra.

  • Architect : M/S Hasmukh C. Patel, Ahmedabad

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Project Cost : Rs. 20 crores

  • Year : 2001-2002

  • Structural System : R.C.C frame structure

  • Substructure : solated and combined concrete footings

Residential/Public Buildings:

Different housing facilities were designed as mentioned below.

Description No. of Units Area (Sq. meter) Total Area (Sq. meter)
D-Type Quarters 6 172.61 1035.66
E-Type Quarters (G+2) 20 151.74 3034.8
F-Type Quarters (G+3) 96 98.92 9294.72
G – Type Quarters (G+3) 78.62 192 15095.04
Bachelor’s Hostel (24 rooms) (G+3) 1 1543 1543.0
Guest House, 12 rooms, G+3 1 2089 2089
Shopping Center 1 400 400
Health Center 1 300 300
School Building 1 1115 1115
Club House 1 930 930
Multi Purpose Hall 1 500 500
Over Head Tank, 1.75 Lacs, 25 Mt. High 1 1.75 Lacs liters 1.75 Lacs liters

Hiland Township at Batanagar, Kolkata

  • Architect : M/S Hasmukh C. Patel, Ahmedabad

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Total Area : 20 Acres

  • Project Cost : Rs.200 crores

  • Year : 2006

  • Structural System : R.C.C frame structure

  • Substructure :Deep Pile Foundations

Residential/Public Buildings:

Different housing facilities were designed as mentioned below.

Description No. of Units Area (Sq. meter) Total Area (Sq. meter)
Villa – Type 1A 9 200 1800
Villa – Type 1B 15 207 3105
Villa – Type 2 108 202 21816
Villa – Type 3 14 284 3976
10 Storey Single Tower 16 5620 89920
10 Storey Twin Towers 4 10579 42316

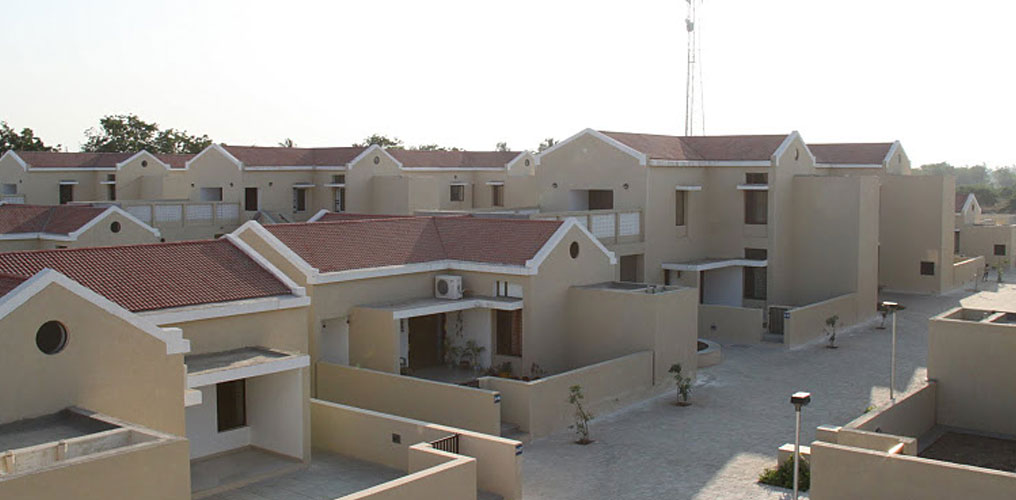

Township for Coastal Guard Power Limited (CGPL), A Tata Power Comapany, Mundra, Gujarat

  • Architect : M/S Hasmukh C. Patel, Ahmedabad

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Project Cost : Rs.150 crores

  • Year : 2010 & 2013

  • Structural System : R.C.C frame structure

Residential/Public Buildings incl. School Building.

Description No. of Units Area (Sq. meter) Total Area (Sq. meter)
Villa – Type B 213 200 42600
Villa – Type C 24 177 4248
Villa – Type D 5 405 2025
Guest House 1 1800 1800
Club Building 2 650 650
Hospital 1 400 400
Shopping Complex 1 370 370
Multipurpose Hall 1 805 805
Substations 2 200 200
UG Tanks, Pump rooms 3 15 Lacs + 2 Lacs +1 Lacs
Swimming Pool 1 500 500
School building 1 2000 2000

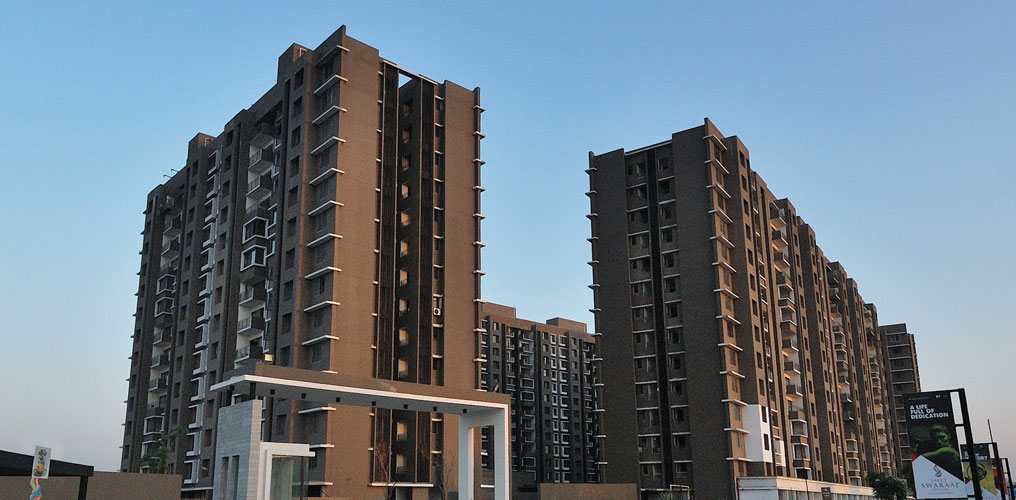

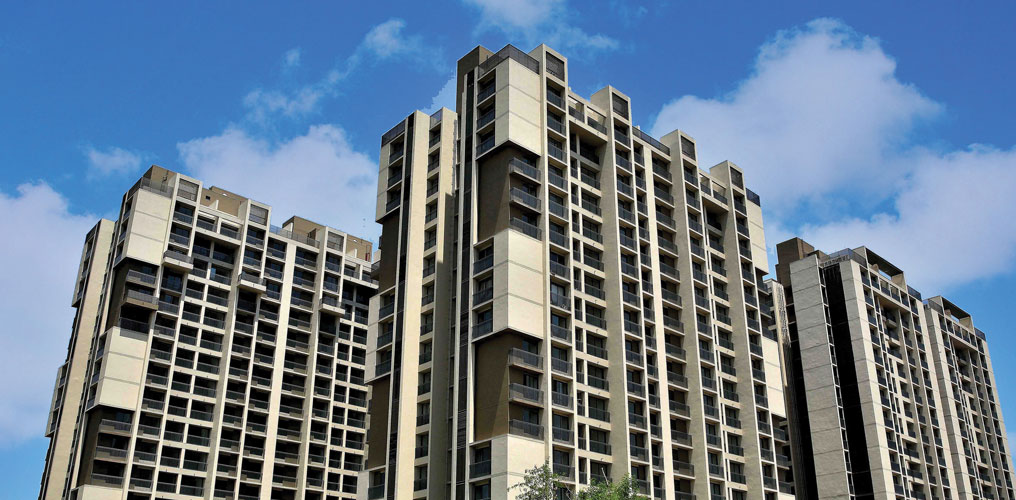

Savvy Swaraj Township for Savvy Group , Ahmedabad.

  • Architect : M/S. Kapadia Associates, Mumbai.

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Project Cost : Rs.600 crores

  • Year : 2011 & 2012

  • Structural System : R.C.C frame structure

Residential Buildings:

Different housing facilities were designed as mentioned below.

Description No. of Units Area (Sq. meter) Total Area (Sq. Ft)
Type A Unit 17 73440 790214
Type B Unit 11 45804 492851
Type C Unit 8 46752 503051
Type D Unit 8 85712 922261
Retail Edge on G.F. 1 823 8855
Basement of Phase – 1 13843 148950
Basement of Phase – 2 2046 22015
Basement of Phase – 3 16138 173655

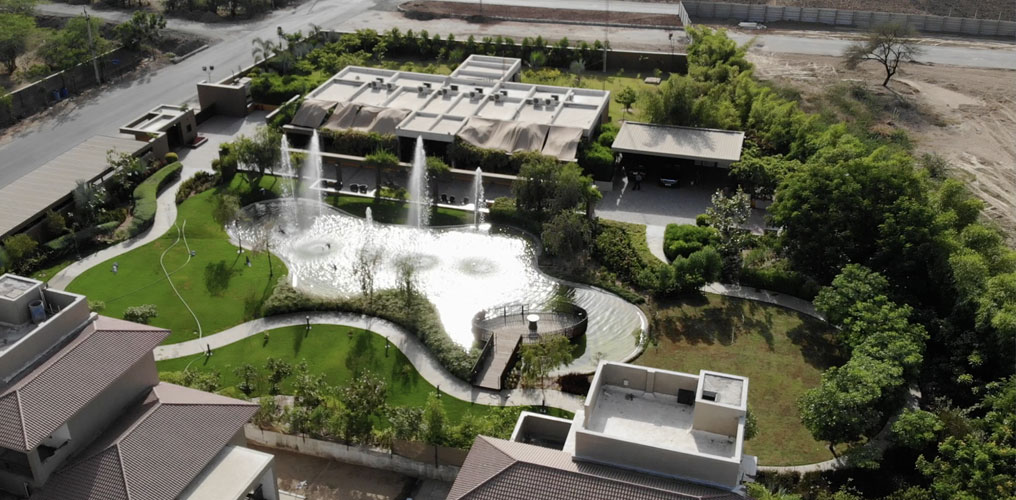

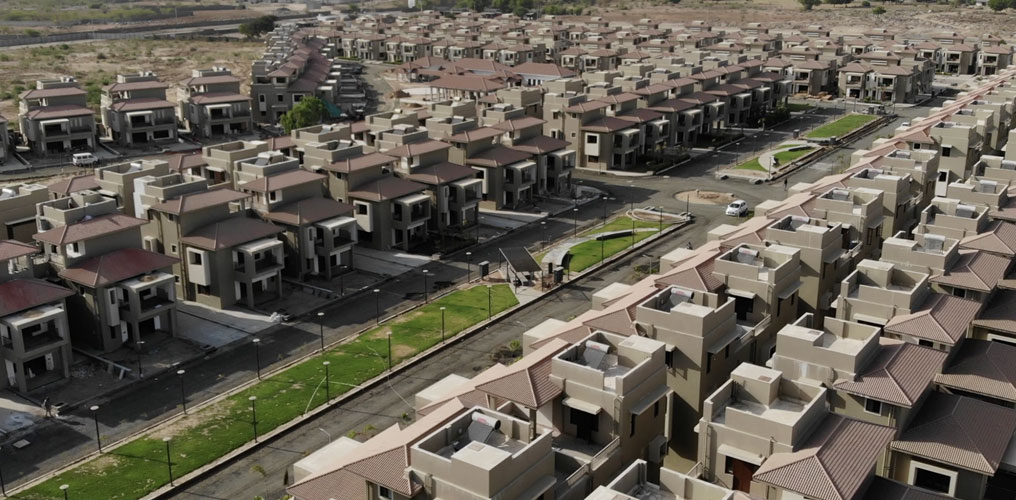

Super City Township Project, Ahmedabad.

  • Architect : Jigar Panchal, Ahmedabad

  • Developers : Shrinivas Organizers Pvt.Ltd.

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Location : Santej – Rakanpur main road of district : Gandhinagar.

  • Project Cost: Rs. 1200 Crores

  • Year: 2015-2018

  • Structural System: R.C.C frame structure and load bearing structures

  • Scheme : About 600 bunglows scheme & Club Houses.

Most ultra modern bunglows township project various types of bunglows;

  • Grand
  • Glory
  • Pride
  • Honour

With all infrastructure facilities in township incl. club house.

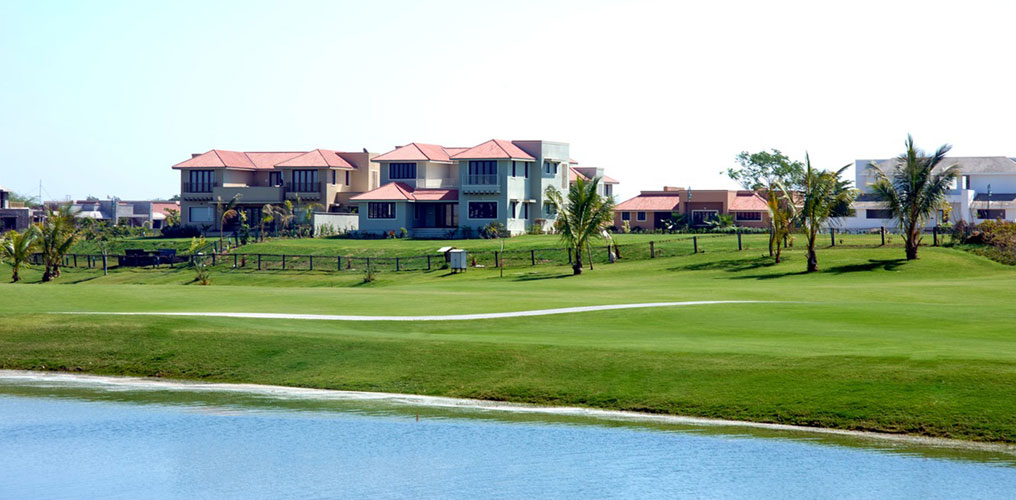

Kalhaar Blues & Greens Township & Golf Course Project, Ahmedabad.

  • Architect : Marsh Associates, Australia.

  • Developers : Navratna Builders & Developers Pvt. Ltd

  • Structural Consultant : Naresh K. Shah, Ahmedabad

  • Location : Bopal – Sanand byepass road, Ahmedabad.

  • Project Cost: Rs. 600.0 Crores

  • Year: 2011-2018

  • Structural System: R.C.C frame structure and load bearing structures

  • Scheme : Most ultra modern bunglow township project various types of bunglows. About 600 bunglows scheme with Club Houses, 18 hole Golf course & with all infrastructure facilities in township.
